SpringBoot集成ShardingJDBC - 基于JPA的单库分表
上文介绍SpringBoot集成基于ShardingJDBC的读写分离实践，本文在此基础上介绍SpringBoot集成基于ShardingJDBC+JPA的单库分表实践。@pdai
知识准备
主要理解Sharding-JDBC及JPA等。@pdai
ShardingJDBC 相关 SpringBoot集成ShardingJDBC - Sharding-JDBC简介和基于MyBatis的单库分表
简单示例
这里主要介绍SpringBoot集成基于ShardingJDBC的单库分表实践，主要承接之前的相关文章在JPA的基础上实现的。
准备DB和依赖配置
创建MySQL的schema test_db_sharding, 导入SQL 文件如下
-- MySQL dump 10.13 Distrib 8.0.28, for Win64 (x86_64)
--
-- Host: localhost Database: test_db_sharding
-- ------------------------------------------------------
-- Server version 8.0.28
/*!40101 SET @OLD_CHARACTER_SET_CLIENT=@@CHARACTER_SET_CLIENT */;
/*!40101 SET @OLD_CHARACTER_SET_RESULTS=@@CHARACTER_SET_RESULTS */;
/*!40101 SET @OLD_COLLATION_CONNECTION=@@COLLATION_CONNECTION */;
/*!50503 SET NAMES utf8 */;
/*!40103 SET @OLD_TIME_ZONE=@@TIME_ZONE */;
/*!40103 SET TIME_ZONE='+00:00' */;
/*!40014 SET @OLD_UNIQUE_CHECKS=@@UNIQUE_CHECKS, UNIQUE_CHECKS=0 */;
/*!40014 SET @OLD_FOREIGN_KEY_CHECKS=@@FOREIGN_KEY_CHECKS, FOREIGN_KEY_CHECKS=0 */;
/*!40101 SET @OLD_SQL_MODE=@@SQL_MODE, SQL_MODE='NO_AUTO_VALUE_ON_ZERO' */;
/*!40111 SET @OLD_SQL_NOTES=@@SQL_NOTES, SQL_NOTES=0 */;
--
-- Table structure for table `tb_role_0`
--
DROP TABLE IF EXISTS `tb_role_0`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!50503 SET character_set_client = utf8mb4 */;
CREATE TABLE `tb_role_0` (
`id` bigint NOT NULL,
`name` varchar(255) NOT NULL,
`role_key` varchar(255) NOT NULL,
`description` varchar(255) DEFAULT NULL,
`create_time` datetime DEFAULT NULL,
`update_time` datetime DEFAULT NULL,
PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb3;
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Dumping data for table `tb_role_0`
--
LOCK TABLES `tb_role_0` WRITE;
/*!40000 ALTER TABLE `tb_role_0` DISABLE KEYS */;
INSERT INTO `tb_role_0` VALUES (3,'333','333','33','2021-09-08 17:09:15','2021-09-08 17:09:15');
/*!40000 ALTER TABLE `tb_role_0` ENABLE KEYS */;
UNLOCK TABLES;
--
-- Table structure for table `tb_role_1`
--
DROP TABLE IF EXISTS `tb_role_1`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!50503 SET character_set_client = utf8mb4 */;
CREATE TABLE `tb_role_1` (
`id` bigint NOT NULL,
`name` varchar(255) NOT NULL,
`role_key` varchar(255) NOT NULL,
`description` varchar(255) DEFAULT NULL,
`create_time` datetime DEFAULT NULL,
`update_time` datetime DEFAULT NULL,
PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb3;
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Dumping data for table `tb_role_1`
--
LOCK TABLES `tb_role_1` WRITE;
/*!40000 ALTER TABLE `tb_role_1` DISABLE KEYS */;
INSERT INTO `tb_role_1` VALUES (1,'admin','admin','admin','2021-09-08 17:09:15','2021-09-08 17:09:15'),(2,'11','11','11','2021-09-08 17:09:15','2021-09-08 17:09:15');
/*!40000 ALTER TABLE `tb_role_1` ENABLE KEYS */;
UNLOCK TABLES;
--
-- Table structure for table `tb_user_0`
--
DROP TABLE IF EXISTS `tb_user_0`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!50503 SET character_set_client = utf8mb4 */;
CREATE TABLE `tb_user_0` (
`id` bigint NOT NULL,
`user_name` varchar(45) NOT NULL,
`password` varchar(45) NOT NULL,
`email` varchar(45) DEFAULT NULL,
`phone_number` int DEFAULT NULL,
`description` varchar(255) DEFAULT NULL,
`create_time` datetime DEFAULT NULL,
`update_time` datetime DEFAULT NULL,
PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb3;
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Dumping data for table `tb_user_0`
--
LOCK TABLES `tb_user_0` WRITE;
/*!40000 ALTER TABLE `tb_user_0` DISABLE KEYS */;
INSERT INTO `tb_user_0` VALUES (718415228786159616,'pdai','dad','pdai@pdai.tech',121212121,'pdai','2022-04-06 20:45:38','2022-04-06 20:45:38');
/*!40000 ALTER TABLE `tb_user_0` ENABLE KEYS */;
UNLOCK TABLES;
--
-- Table structure for table `tb_user_1`
--
DROP TABLE IF EXISTS `tb_user_1`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!50503 SET character_set_client = utf8mb4 */;
CREATE TABLE `tb_user_1` (
`id` bigint NOT NULL,
`user_name` varchar(45) NOT NULL,
`password` varchar(45) NOT NULL,
`email` varchar(45) DEFAULT NULL,
`phone_number` int DEFAULT NULL,
`description` varchar(255) DEFAULT NULL,
`create_time` datetime DEFAULT NULL,
`update_time` datetime DEFAULT NULL,
PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb3;
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Dumping data for table `tb_user_1`
--
LOCK TABLES `tb_user_1` WRITE;
/*!40000 ALTER TABLE `tb_user_1` DISABLE KEYS */;
INSERT INTO `tb_user_1` VALUES (1,'pdai','dfasdf','suzhou.daipeng@gmail.com',1212121213,'afsdfsaf','2021-09-08 17:09:15','2021-09-08 17:09:15'),(718415481409089537,'pdai2','dad2','pdai2@pdai.tech',1212121212,'pdai2','2022-04-06 20:46:38','2022-04-06 20:46:38');
/*!40000 ALTER TABLE `tb_user_1` ENABLE KEYS */;
UNLOCK TABLES;
--
-- Table structure for table `tb_user_role_0`
--
DROP TABLE IF EXISTS `tb_user_role_0`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!50503 SET character_set_client = utf8mb4 */;
CREATE TABLE `tb_user_role_0` (
`id` bigint NOT NULL,
`user_id` bigint NOT NULL,
`role_id` bigint NOT NULL,
PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb3;
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Dumping data for table `tb_user_role_0`
--
LOCK TABLES `tb_user_role_0` WRITE;
/*!40000 ALTER TABLE `tb_user_role_0` DISABLE KEYS */;
INSERT INTO `tb_user_role_0` VALUES (1,1,1);
/*!40000 ALTER TABLE `tb_user_role_0` ENABLE KEYS */;
UNLOCK TABLES;
--
-- Table structure for table `tb_user_role_1`
--
DROP TABLE IF EXISTS `tb_user_role_1`;
/*!40101 SET @saved_cs_client = @@character_set_client */;
/*!50503 SET character_set_client = utf8mb4 */;
CREATE TABLE `tb_user_role_1` (
`id` bigint NOT NULL,
`user_id` bigint NOT NULL,
`role_id` bigint NOT NULL,
PRIMARY KEY (`id`)
) ENGINE=InnoDB DEFAULT CHARSET=utf8mb3;
/*!40101 SET character_set_client = @saved_cs_client */;
--
-- Dumping data for table `tb_user_role_1`
--
LOCK TABLES `tb_user_role_1` WRITE;
/*!40000 ALTER TABLE `tb_user_role_1` DISABLE KEYS */;
INSERT INTO `tb_user_role_1` VALUES (11,718415481409089537,3),(13,718415228786159616,2);
/*!40000 ALTER TABLE `tb_user_role_1` ENABLE KEYS */;
UNLOCK TABLES;
/*!40103 SET TIME_ZONE=@OLD_TIME_ZONE */;
/*!40101 SET SQL_MODE=@OLD_SQL_MODE */;
/*!40014 SET FOREIGN_KEY_CHECKS=@OLD_FOREIGN_KEY_CHECKS */;
/*!40014 SET UNIQUE_CHECKS=@OLD_UNIQUE_CHECKS */;
/*!40101 SET CHARACTER_SET_CLIENT=@OLD_CHARACTER_SET_CLIENT */;
/*!40101 SET CHARACTER_SET_RESULTS=@OLD_CHARACTER_SET_RESULTS */;
/*!40101 SET COLLATION_CONNECTION=@OLD_COLLATION_CONNECTION */;
/*!40111 SET SQL_NOTES=@OLD_SQL_NOTES */;
-- Dump completed on 2022-04-06 23:06:23
引入maven依赖, 包含mysql驱动，JPA, 以及sharding-jdbc的依赖。
<dependency>
<groupId>mysql</groupId>
<artifactId>mysql-connector-java</artifactId>
<version>8.0.28</version>
</dependency>
<dependency>
<groupId>com.github.wenhao</groupId>
<artifactId>jpa-spec</artifactId>
<version>3.1.0</version>
</dependency>
<dependency>
<groupId>org.springframework.boot</groupId>
<artifactId>spring-boot-starter-data-jpa</artifactId>
</dependency>
<dependency>
<groupId>org.apache.shardingsphere</groupId>
<artifactId>sharding-jdbc-spring-boot-starter</artifactId>
<version>4.1.1</version>
</dependency>
增加yml配置
spring:
shardingsphere:
datasource:
names: ds
ds:
type: com.zaxxer.hikari.HikariDataSource
driver-class-name: com.mysql.cj.jdbc.Driver
jdbc-url: jdbc:mysql://localhost:3306/test_db_sharding?allowPublicKeyRetrieval=true&useSSL=false&autoReconnect=true&characterEncoding=utf8
username: root
password: bfXa4Pt2lUUScy8jakXf
sharding:
tables:
tb_user:
actual-data-nodes: ds.tb_user_$->{0..1}
table-strategy:
inline:
sharding-column: id
algorithm-expression: tb_user_$->{id % 2}
key-generator:
column: id
type: SNOWFLAKE
props:
worker:
id: 123
tb_role:
actual-data-nodes: ds.tb_role_$->{0..1}
table-strategy:
inline:
sharding-column: id
algorithm-expression: tb_role_$->{id % 2}
key-generator:
column: id
type: SNOWFLAKE
props:
worker:
id: 123
tb_user_role:
actual-data-nodes: ds.tb_user_role_$->{0..1}
table-strategy:
inline:
sharding-column: id
algorithm-expression: tb_user_role_$->{id % 2}
key-generator:
column: id
type: SNOWFLAKE
props:
worker:
id: 123
binding-tables: tb_user,tb_role,tb_user_role
jpa:
open-in-view: false
generate-ddl: false
show-sql: false
properties:
hibernate:
dialect: org.hibernate.dialect.MySQLDialect
format_sql: true
use-new-id-generator-mappings: false
Entity
user entity
package tech.pdai.springboot.shardingjdbc.jpa.tables.entity;
import java.time.LocalDateTime;
import java.util.Set;
import javax.persistence.CascadeType;
import javax.persistence.Column;
import javax.persistence.Entity;
import javax.persistence.FetchType;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;
import javax.persistence.JoinColumn;
import javax.persistence.JoinTable;
import javax.persistence.ManyToMany;
import javax.persistence.Table;
import lombok.Getter;
import lombok.Setter;
import lombok.ToString;
/**
* @author pdai
*/
@Getter
@Setter
@ToString
@Entity
@Table(name = "tb_user")
public class User implements BaseEntity {
/**
* user id.
*/
@Id
@GeneratedValue(strategy = GenerationType.IDENTITY)
@Column(name = "id", nullable = false)
private Long id;
/**
* username.
*/
private String userName;
/**
* user pwd.
*/
private String password;
/**
* email.
*/
private String email;
/**
* phoneNumber.
*/
private long phoneNumber;
/**
* description.
*/
private String description;
/**
* create date time.
*/
private LocalDateTime createTime;
/**
* update date time.
*/
private LocalDateTime updateTime;
/**
* join to role table.
*/
@ManyToMany(cascade = {CascadeType.REFRESH}, fetch = FetchType.EAGER)
@JoinTable(name = "tb_user_role", joinColumns = {
@JoinColumn(name = "user_id")}, inverseJoinColumns = {@JoinColumn(name = "role_id")})
private Set<Role> roles;
}
role entity
package tech.pdai.springboot.shardingjdbc.jpa.tables.entity;
import java.time.LocalDateTime;
import javax.persistence.Column;
import javax.persistence.Entity;
import javax.persistence.GeneratedValue;
import javax.persistence.GenerationType;
import javax.persistence.Id;
import javax.persistence.Table;
import lombok.Getter;
import lombok.Setter;
import lombok.ToString;
/**
* @author pdai
*/
@Getter
@Setter
@ToString
@Entity
@Table(name = "tb_role")
public class Role implements BaseEntity {
/**
* role id.
*/
@Id
@GeneratedValue(strategy = GenerationType.IDENTITY)
@Column(name = "id", nullable = false)
private Long id;
/**
* role name.
*/
private String name;
/**
* role key.
*/
private String roleKey;
/**
* description.
*/
private String description;
/**
* create date time.
*/
private LocalDateTime createTime;
/**
* update date time.
*/
private LocalDateTime updateTime;
}
DAO
user dao
package tech.pdai.springboot.shardingjdbc.jpa.tables.dao;
import org.springframework.stereotype.Repository;
import tech.pdai.springboot.shardingjdbc.jpa.tables.entity.User;
/**
* @author pdai
*/
@Repository
public interface IUserDao extends IBaseDao<User, Long> {
}
role dao
package tech.pdai.springboot.shardingjdbc.jpa.tables.dao;
import org.springframework.stereotype.Repository;
import tech.pdai.springboot.shardingjdbc.jpa.tables.entity.Role;
/**
* @author pdai
*/
@Repository
public interface IRoleDao extends IBaseDao<Role, Long> {
}
Service
user service 接口
package tech.pdai.springboot.shardingjdbc.jpa.tables.service;
import org.springframework.data.domain.Page;
import org.springframework.data.domain.PageRequest;
import tech.pdai.springboot.shardingjdbc.jpa.tables.entity.User;
import tech.pdai.springboot.shardingjdbc.jpa.tables.entity.query.UserQueryBean;
/**
* @author pdai
*/
public interface IUserService extends IBaseService<User, Long> {
/**
* find by page.
*
* @param userQueryBean query
* @param pageRequest pageRequest
* @return page
*/
Page<User> findPage(UserQueryBean userQueryBean, PageRequest pageRequest);
}
user service 实现类
package tech.pdai.springboot.shardingjdbc.jpa.tables.service.impl;
import com.github.wenhao.jpa.Specifications;
import org.apache.commons.lang3.StringUtils;
import org.springframework.data.domain.Page;
import org.springframework.data.domain.PageRequest;
import org.springframework.data.jpa.domain.Specification;
import org.springframework.stereotype.Service;
import tech.pdai.springboot.shardingjdbc.jpa.tables.dao.IBaseDao;
import tech.pdai.springboot.shardingjdbc.jpa.tables.dao.IUserDao;
import tech.pdai.springboot.shardingjdbc.jpa.tables.entity.User;
import tech.pdai.springboot.shardingjdbc.jpa.tables.entity.query.UserQueryBean;
import tech.pdai.springboot.shardingjdbc.jpa.tables.service.IUserService;
@Service
public class UserDoServiceImpl extends BaseDoServiceImpl<User, Long> implements IUserService {
/**
* userDao.
*/
private final IUserDao userDao;
/**
* init.
*
* @param userDao2 user dao
*/
public UserDoServiceImpl(final IUserDao userDao2) {
this.userDao = userDao2;
}
/**
* @return base dao
*/
@Override
public IBaseDao<User, Long> getBaseDao() {
return this.userDao;
}
/**
* find by page.
*
* @param queryBean query
* @param pageRequest pageRequest
* @return page
*/
@Override
public Page<User> findPage(UserQueryBean queryBean, PageRequest pageRequest) {
Specification<User> specification = Specifications.<User>and()
.like(StringUtils.isNotEmpty(queryBean.getName()), "user_name", queryBean.getName())
.like(StringUtils.isNotEmpty(queryBean.getDescription()), "description",
queryBean.getDescription())
.build();
return this.getBaseDao().findAll(specification, pageRequest);
}
}
role service 接口
package tech.pdai.springboot.shardingjdbc.jpa.tables.service;
import org.springframework.data.domain.Page;
import org.springframework.data.domain.PageRequest;
import tech.pdai.springboot.shardingjdbc.jpa.tables.entity.Role;
import tech.pdai.springboot.shardingjdbc.jpa.tables.entity.query.RoleQueryBean;
public interface IRoleService extends IBaseService<Role, Long> {
/**
* find page by query.
*
* @param roleQueryBean query
* @param pageRequest pageRequest
* @return page
*/
Page<Role> findPage(RoleQueryBean roleQueryBean, PageRequest pageRequest);
}
role service 实现类
package tech.pdai.springboot.shardingjdbc.jpa.tables.service.impl;
import com.github.wenhao.jpa.Specifications;
import org.apache.commons.lang3.StringUtils;
import org.springframework.data.domain.Page;
import org.springframework.data.domain.PageRequest;
import org.springframework.data.jpa.domain.Specification;
import org.springframework.stereotype.Service;
import tech.pdai.springboot.shardingjdbc.jpa.tables.dao.IBaseDao;
import tech.pdai.springboot.shardingjdbc.jpa.tables.dao.IRoleDao;
import tech.pdai.springboot.shardingjdbc.jpa.tables.entity.Role;
import tech.pdai.springboot.shardingjdbc.jpa.tables.entity.query.RoleQueryBean;
import tech.pdai.springboot.shardingjdbc.jpa.tables.service.IRoleService;
@Service
public class RoleDoServiceImpl extends BaseDoServiceImpl<Role, Long> implements IRoleService {
/**
* roleDao.
*/
private final IRoleDao roleDao;
/**
* init.
*
* @param roleDao2 role dao
*/
public RoleDoServiceImpl(final IRoleDao roleDao2) {
this.roleDao = roleDao2;
}
/**
* @return base dao
*/
@Override
public IBaseDao<Role, Long> getBaseDao() {
return this.roleDao;
}
/**
* find page by query.
*
* @param roleQueryBean query
* @param pageRequest pageRequest
* @return page
*/
@Override
public Page<Role> findPage(RoleQueryBean roleQueryBean, PageRequest pageRequest) {
Specification<Role> specification = Specifications.<Role>and()
.like(StringUtils.isNotEmpty(roleQueryBean.getName()), "name",
roleQueryBean.getName())
.like(StringUtils.isNotEmpty(roleQueryBean.getDescription()), "description",
roleQueryBean.getDescription())
.build();
return this.roleDao.findAll(specification, pageRequest);
}
}
Controller
user controller
package tech.pdai.springboot.shardingjdbc.jpa.tables.controller;
import java.time.LocalDateTime;
import io.swagger.annotations.ApiOperation;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.data.domain.Page;
import org.springframework.data.domain.PageRequest;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PathVariable;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;
import tech.pdai.springboot.shardingjdbc.jpa.tables.entity.User;
import tech.pdai.springboot.shardingjdbc.jpa.tables.entity.query.UserQueryBean;
import tech.pdai.springboot.shardingjdbc.jpa.tables.entity.response.ResponseResult;
import tech.pdai.springboot.shardingjdbc.jpa.tables.service.IUserService;
/**
* @author pdai
*/
@RestController
@RequestMapping("/user")
public class UserController {
@Autowired
private IUserService userService;
/**
* @param user user param
* @return user
*/
@ApiOperation("Add/Edit User")
@PostMapping("add")
public ResponseResult<User> add(User user) {
if (user.getId()==null || !userService.exists(user.getId())) {
user.setCreateTime(LocalDateTime.now());
user.setUpdateTime(LocalDateTime.now());
userService.save(user);
} else {
user.setUpdateTime(LocalDateTime.now());
userService.update(user);
}
return ResponseResult.success(userService.find(user.getId()));
}
/**
* @return user list
*/
@ApiOperation("Query User One")
@GetMapping("edit/{userId}")
public ResponseResult<User> edit(@PathVariable("userId") Long userId) {
return ResponseResult.success(userService.find(userId));
}
/**
* @return user list
*/
@ApiOperation("Query User Page")
@GetMapping("list")
public ResponseResult<Page<User>> list(@RequestParam int pageSize, @RequestParam int pageNumber) {
return ResponseResult.success(userService.findPage(UserQueryBean.builder().build(), PageRequest.of(pageNumber, pageSize)));
}
}
简单测试
访问页面：
http://localhost:8080/doc.html

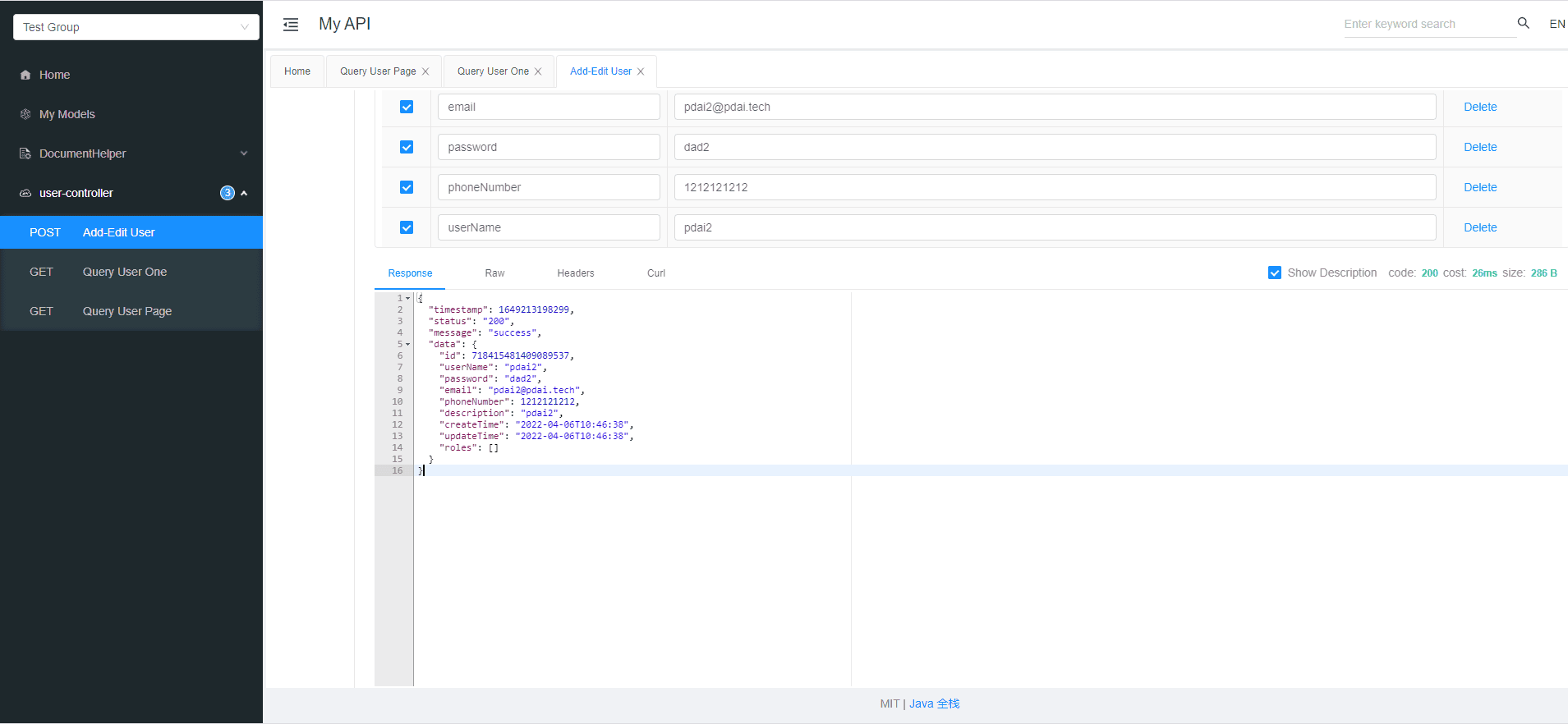

插入数据

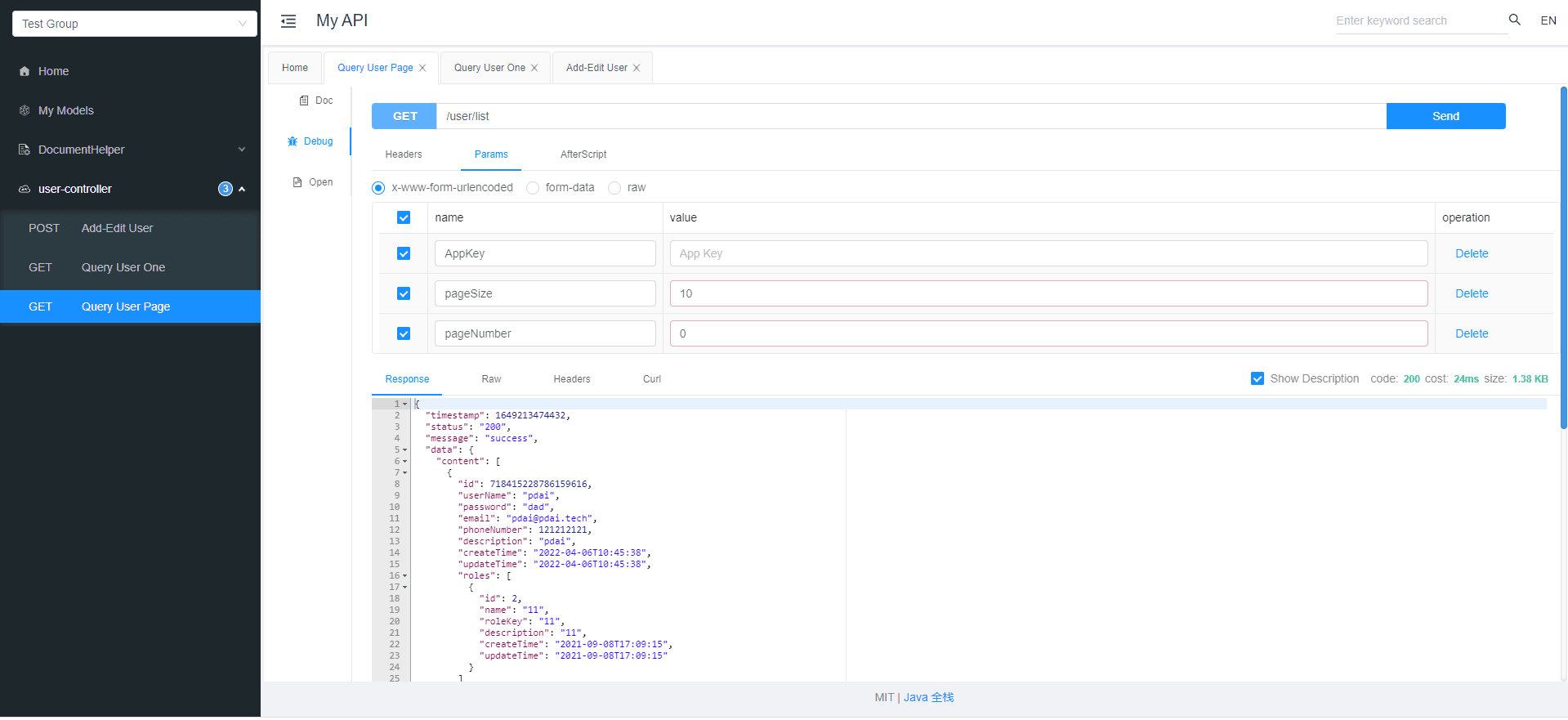

查询数据
示例源码
https://github.com/realpdai/tech-pdai-spring-demos
