SpringBoot定时任务 - 分布式quartz cluster方式

通常我们使用quartz只是实现job单实例运行，本例将展示quartz实现基于数据库的分布式任务管理，和控制job生命周期。@pdai

SpringBoot定时任务 - 分布式quartz cluster方式

准备知识点

需要理解Quartz的持久化。

什么是Quartz持久化

为什么要持久化？

当程序突然被中断时，如断电，内存超出时，很有可能造成任务的丢失。可以将调度信息存储到数据库里面，进行持久化，当程序被中断后，再次启动，仍然会保留中断之前的数据，继续执行，而并不是重新开始。

Quartz提供了两种持久化方式

Quartz提供两种基本作业存储类型:

RAMJobStore

在默认情况下Quartz将任务调度的运行信息保存在内存中，这种方法提供了最佳的性能，因为内存中数据访问最快。不足之处是缺乏数据的持久性，当程序路途停止或系统崩溃时，所有运行的信息都会丢失。

JobStoreTX

所有的任务信息都会保存到数据库中，可以控制事物，还有就是如果应用服务器关闭或者重启，任务信息都不会丢失，并且可以恢复因服务器关闭或者重启而导致执行失败的任务。

实现案例

本例将展示quartz实现基于数据库的分布式任务管理，和控制job生命周期。

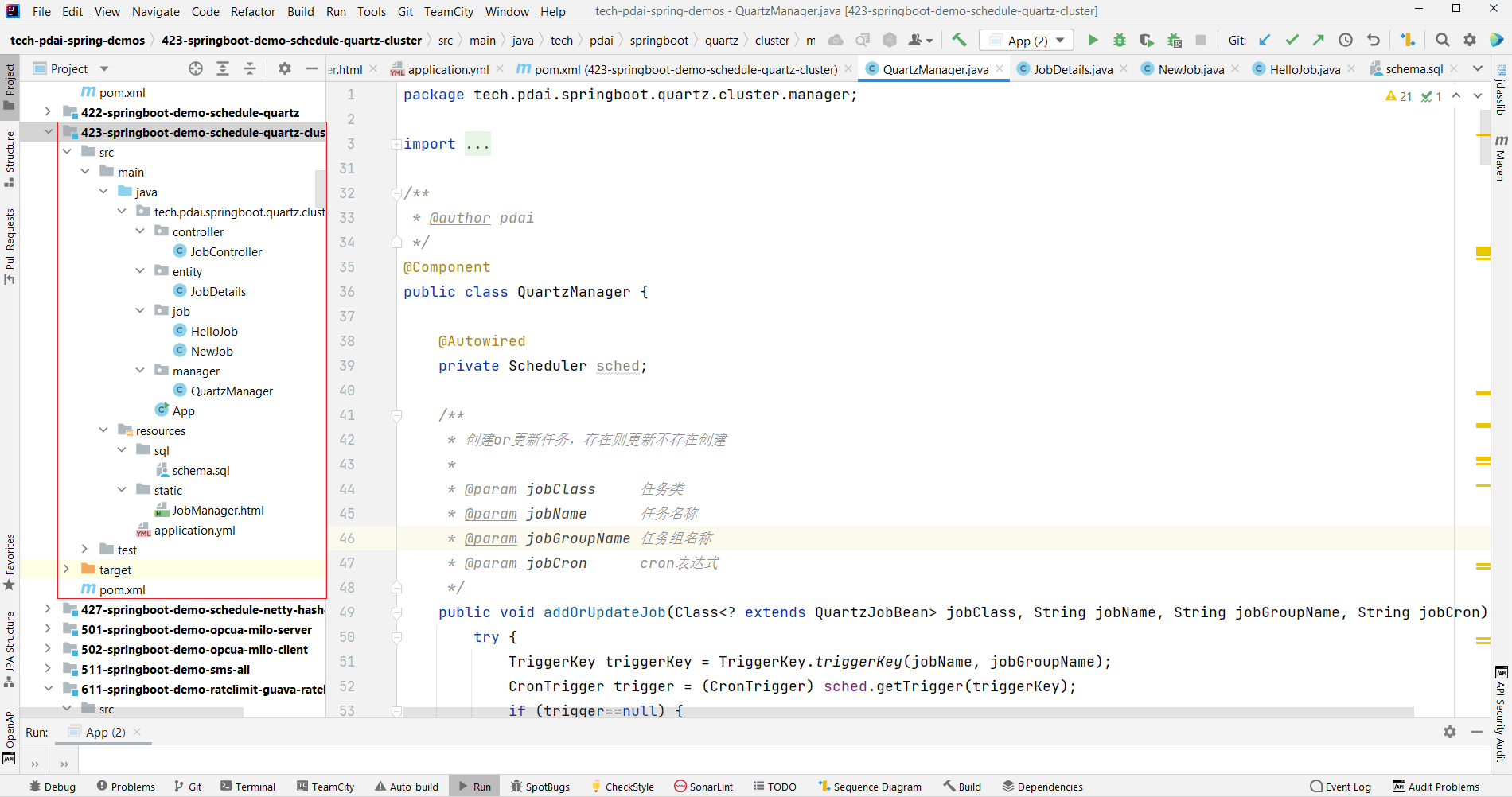

整体项目结构如下：

后端实现

pom.xml

<?xml version="1.0" encoding="UTF-8"?>
<project xmlns="http://maven.apache.org/POM/4.0.0"
         xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
         xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
    <parent>
        <groupId>org.springframework.boot</groupId>
        <artifactId>spring-boot-starter-parent</artifactId>
        <version>2.5.3</version>
        <relativePath/> <!-- lookup parent from repository -->
    </parent>

    <modelVersion>4.0.0</modelVersion>
    <groupId>tech.pdai</groupId>
    <artifactId>423-springboot-demo-schedule-quartz-cluster</artifactId>
    <version>1.0-SNAPSHOT</version>

    <properties>
        <maven.compiler.source>8</maven.compiler.source>
        <maven.compiler.target>8</maven.compiler.target>
    </properties>

    <dependencies>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-quartz</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-web</artifactId>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-data-jpa</artifactId>
        </dependency>
        <dependency>
            <groupId>mysql</groupId>
            <artifactId>mysql-connector-java</artifactId>
            <version>5.1.42</version><!--$NO-MVN-MAN-VER$-->
            <scope>runtime</scope>
        </dependency>
        <dependency>
            <groupId>org.springframework.boot</groupId>
            <artifactId>spring-boot-starter-test</artifactId>
            <scope>test</scope>
        </dependency>

        <dependency>
            <groupId>org.projectlombok</groupId>
            <artifactId>lombok</artifactId>
            <version>1.18.20</version>
            <optional>true</optional>
        </dependency>

        <dependency>
            <groupId>com.github.pagehelper</groupId>
            <artifactId>pagehelper</artifactId>
            <version>5.0.0</version>
        </dependency>
    </dependencies>

</project>

创建Schema

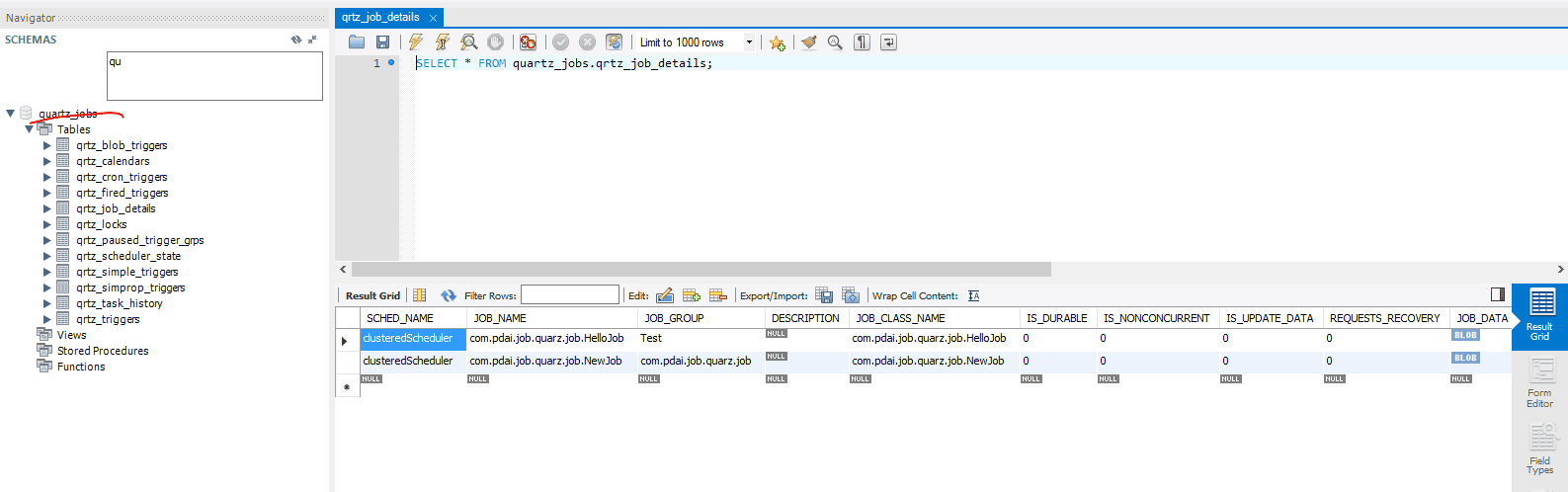

需要提前在MySQL中创建schema: quartz_jobs

# DROP TABLE IF EXISTS QRTZ_FIRED_TRIGGERS;
# DROP TABLE IF EXISTS QRTZ_PAUSED_TRIGGER_GRPS;
# DROP TABLE IF EXISTS QRTZ_SCHEDULER_STATE;
# DROP TABLE IF EXISTS QRTZ_LOCKS;
# DROP TABLE IF EXISTS QRTZ_SIMPLE_TRIGGERS;
# DROP TABLE IF EXISTS QRTZ_SIMPROP_TRIGGERS;
# DROP TABLE IF EXISTS QRTZ_CRON_TRIGGERS;
# DROP TABLE IF EXISTS QRTZ_BLOB_TRIGGERS;
# DROP TABLE IF EXISTS QRTZ_TRIGGERS;
# DROP TABLE IF EXISTS QRTZ_JOB_DETAILS;
# DROP TABLE IF EXISTS QRTZ_CALENDARS;
# DROP TABLE IF EXISTS QRTZ_TASK_HISTORY;

CREATE TABLE QRTZ_JOB_DETAILS(
  SCHED_NAME VARCHAR(120) NOT NULL,
  JOB_NAME VARCHAR(200) NOT NULL,
  JOB_GROUP VARCHAR(200) NOT NULL,
  DESCRIPTION VARCHAR(250) NULL,
  JOB_CLASS_NAME VARCHAR(250) NOT NULL,
  IS_DURABLE VARCHAR(1) NOT NULL,
  IS_NONCONCURRENT VARCHAR(1) NOT NULL,
  IS_UPDATE_DATA VARCHAR(1) NOT NULL,
  REQUESTS_RECOVERY VARCHAR(1) NOT NULL,
  JOB_DATA BLOB NULL,
  PRIMARY KEY (SCHED_NAME,JOB_NAME,JOB_GROUP))
  ENGINE=InnoDB;

CREATE TABLE QRTZ_TRIGGERS (
  SCHED_NAME VARCHAR(120) NOT NULL,
  TRIGGER_NAME VARCHAR(200) NOT NULL,
  TRIGGER_GROUP VARCHAR(200) NOT NULL,
  JOB_NAME VARCHAR(200) NOT NULL,
  JOB_GROUP VARCHAR(200) NOT NULL,
  DESCRIPTION VARCHAR(250) NULL,
  NEXT_FIRE_TIME BIGINT(13) NULL,
  PREV_FIRE_TIME BIGINT(13) NULL,
  PRIORITY INTEGER NULL,
  TRIGGER_STATE VARCHAR(16) NOT NULL,
  TRIGGER_TYPE VARCHAR(8) NOT NULL,
  START_TIME BIGINT(13) NOT NULL,
  END_TIME BIGINT(13) NULL,
  CALENDAR_NAME VARCHAR(200) NULL,
  MISFIRE_INSTR SMALLINT(2) NULL,
  JOB_DATA BLOB NULL,
  PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
  FOREIGN KEY (SCHED_NAME,JOB_NAME,JOB_GROUP)
  REFERENCES QRTZ_JOB_DETAILS(SCHED_NAME,JOB_NAME,JOB_GROUP))
  ENGINE=InnoDB;

CREATE TABLE QRTZ_SIMPLE_TRIGGERS (
  SCHED_NAME VARCHAR(120) NOT NULL,
  TRIGGER_NAME VARCHAR(200) NOT NULL,
  TRIGGER_GROUP VARCHAR(200) NOT NULL,
  REPEAT_COUNT BIGINT(7) NOT NULL,
  REPEAT_INTERVAL BIGINT(12) NOT NULL,
  TIMES_TRIGGERED BIGINT(10) NOT NULL,
  PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
  FOREIGN KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
  REFERENCES QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP))
  ENGINE=InnoDB;

CREATE TABLE QRTZ_CRON_TRIGGERS (
  SCHED_NAME VARCHAR(120) NOT NULL,
  TRIGGER_NAME VARCHAR(200) NOT NULL,
  TRIGGER_GROUP VARCHAR(200) NOT NULL,
  CRON_EXPRESSION VARCHAR(120) NOT NULL,
  TIME_ZONE_ID VARCHAR(80),
  PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
  FOREIGN KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
  REFERENCES QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP))
  ENGINE=InnoDB;

CREATE TABLE QRTZ_SIMPROP_TRIGGERS
(
  SCHED_NAME VARCHAR(120) NOT NULL,
  TRIGGER_NAME VARCHAR(200) NOT NULL,
  TRIGGER_GROUP VARCHAR(200) NOT NULL,
  STR_PROP_1 VARCHAR(512) NULL,
  STR_PROP_2 VARCHAR(512) NULL,
  STR_PROP_3 VARCHAR(512) NULL,
  INT_PROP_1 INT NULL,
  INT_PROP_2 INT NULL,
  LONG_PROP_1 BIGINT NULL,
  LONG_PROP_2 BIGINT NULL,
  DEC_PROP_1 NUMERIC(13,4) NULL,
  DEC_PROP_2 NUMERIC(13,4) NULL,
  BOOL_PROP_1 VARCHAR(1) NULL,
  BOOL_PROP_2 VARCHAR(1) NULL,
  PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
  FOREIGN KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
  REFERENCES QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP))
  ENGINE=InnoDB;

CREATE TABLE QRTZ_BLOB_TRIGGERS (
  SCHED_NAME VARCHAR(120) NOT NULL,
  TRIGGER_NAME VARCHAR(200) NOT NULL,
  TRIGGER_GROUP VARCHAR(200) NOT NULL,
  BLOB_DATA BLOB NULL,
  PRIMARY KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP),
  INDEX (SCHED_NAME,TRIGGER_NAME, TRIGGER_GROUP),
  FOREIGN KEY (SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP)
  REFERENCES QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP))
  ENGINE=InnoDB;

CREATE TABLE QRTZ_CALENDARS (
  SCHED_NAME VARCHAR(120) NOT NULL,
  CALENDAR_NAME VARCHAR(200) NOT NULL,
  CALENDAR BLOB NOT NULL,
  PRIMARY KEY (SCHED_NAME,CALENDAR_NAME))
  ENGINE=InnoDB;

CREATE TABLE QRTZ_PAUSED_TRIGGER_GRPS (
  SCHED_NAME VARCHAR(120) NOT NULL,
  TRIGGER_GROUP VARCHAR(200) NOT NULL,
  PRIMARY KEY (SCHED_NAME,TRIGGER_GROUP))
  ENGINE=InnoDB;

CREATE TABLE QRTZ_FIRED_TRIGGERS (
  SCHED_NAME VARCHAR(120) NOT NULL,
  ENTRY_ID VARCHAR(95) NOT NULL,
  TRIGGER_NAME VARCHAR(200) NOT NULL,
  TRIGGER_GROUP VARCHAR(200) NOT NULL,
  INSTANCE_NAME VARCHAR(200) NOT NULL,
  FIRED_TIME BIGINT(13) NOT NULL,
  SCHED_TIME BIGINT(13) NOT NULL,
  PRIORITY INTEGER NOT NULL,
  STATE VARCHAR(16) NOT NULL,
  JOB_NAME VARCHAR(200) NULL,
  JOB_GROUP VARCHAR(200) NULL,
  IS_NONCONCURRENT VARCHAR(1) NULL,
  REQUESTS_RECOVERY VARCHAR(1) NULL,
  PRIMARY KEY (SCHED_NAME,ENTRY_ID))
  ENGINE=InnoDB;

CREATE TABLE QRTZ_SCHEDULER_STATE (
  SCHED_NAME VARCHAR(120) NOT NULL,
  INSTANCE_NAME VARCHAR(200) NOT NULL,
  LAST_CHECKIN_TIME BIGINT(13) NOT NULL,
  CHECKIN_INTERVAL BIGINT(13) NOT NULL,
  PRIMARY KEY (SCHED_NAME,INSTANCE_NAME))
  ENGINE=InnoDB;

CREATE TABLE QRTZ_LOCKS (
  SCHED_NAME VARCHAR(120) NOT NULL,
  LOCK_NAME VARCHAR(40) NOT NULL,
  PRIMARY KEY (SCHED_NAME,LOCK_NAME))
  ENGINE=InnoDB;

CREATE TABLE QRTZ_TASK_HISTORY (
  SCHED_NAME VARCHAR(120) NOT NULL,
  INSTANCE_ID VARCHAR(200) NOT NULL,
  FIRE_ID VARCHAR(95) NOT NULL,
  TASK_NAME VARCHAR(200) NULL,
  TASK_GROUP VARCHAR(200) NULL,
  FIRED_TIME BIGINT(13) NULL,
  FIRED_WAY VARCHAR(8) NULL,
  COMPLETE_TIME BIGINT(13) NULL,
  EXPEND_TIME BIGINT(13) NULL,
  REFIRED INT NULL,
  EXEC_STATE VARCHAR(10) NULL,
  LOG TEXT NULL,
  PRIMARY KEY (FIRE_ID)
)ENGINE=InnoDB;

CREATE INDEX IDX_QRTZ_J_REQ_RECOVERY ON QRTZ_JOB_DETAILS(SCHED_NAME,REQUESTS_RECOVERY);
CREATE INDEX IDX_QRTZ_J_GRP ON QRTZ_JOB_DETAILS(SCHED_NAME,JOB_GROUP);

CREATE INDEX IDX_QRTZ_T_J ON QRTZ_TRIGGERS(SCHED_NAME,JOB_NAME,JOB_GROUP);
CREATE INDEX IDX_QRTZ_T_JG ON QRTZ_TRIGGERS(SCHED_NAME,JOB_GROUP);
CREATE INDEX IDX_QRTZ_T_C ON QRTZ_TRIGGERS(SCHED_NAME,CALENDAR_NAME);
CREATE INDEX IDX_QRTZ_T_G ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_GROUP);
CREATE INDEX IDX_QRTZ_T_STATE ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_STATE);
CREATE INDEX IDX_QRTZ_T_N_STATE ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP,TRIGGER_STATE);
CREATE INDEX IDX_QRTZ_T_N_G_STATE ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_GROUP,TRIGGER_STATE);
CREATE INDEX IDX_QRTZ_T_NEXT_FIRE_TIME ON QRTZ_TRIGGERS(SCHED_NAME,NEXT_FIRE_TIME);
CREATE INDEX IDX_QRTZ_T_NFT_ST ON QRTZ_TRIGGERS(SCHED_NAME,TRIGGER_STATE,NEXT_FIRE_TIME);
CREATE INDEX IDX_QRTZ_T_NFT_MISFIRE ON QRTZ_TRIGGERS(SCHED_NAME,MISFIRE_INSTR,NEXT_FIRE_TIME);
CREATE INDEX IDX_QRTZ_T_NFT_ST_MISFIRE ON QRTZ_TRIGGERS(SCHED_NAME,MISFIRE_INSTR,NEXT_FIRE_TIME,TRIGGER_STATE);
CREATE INDEX IDX_QRTZ_T_NFT_ST_MISFIRE_GRP ON QRTZ_TRIGGERS(SCHED_NAME,MISFIRE_INSTR,NEXT_FIRE_TIME,TRIGGER_GROUP,TRIGGER_STATE);

CREATE INDEX IDX_QRTZ_FT_TRIG_INST_NAME ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,INSTANCE_NAME);
CREATE INDEX IDX_QRTZ_FT_INST_JOB_REQ_RCVRY ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,INSTANCE_NAME,REQUESTS_RECOVERY);
CREATE INDEX IDX_QRTZ_FT_J_G ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,JOB_NAME,JOB_GROUP);
CREATE INDEX IDX_QRTZ_FT_JG ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,JOB_GROUP);
CREATE INDEX IDX_QRTZ_FT_T_G ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,TRIGGER_NAME,TRIGGER_GROUP);
CREATE INDEX IDX_QRTZ_FT_TG ON QRTZ_FIRED_TRIGGERS(SCHED_NAME,TRIGGER_GROUP);

CREATE INDEX IDX_QRTZ_TK_S ON QRTZ_TASK_HISTORY(SCHED_NAME);

commit;

application.yml

spring:
  datasource:
    url: jdbc:mysql://localhost:3306/quartz_jobs?useUnicode=true&useSSL=false
    username: root
    password: xxxxxxxx
    driver-class-name: com.mysql.jdbc.Driver
  quartz:
    #相关属性配置
    properties:
      org:
        quartz:
          scheduler:
            instanceName: clusteredScheduler
            instanceId: AUTO
          jobStore:
            class: org.quartz.impl.jdbcjobstore.JobStoreTX
            driverDelegateClass: org.quartz.impl.jdbcjobstore.StdJDBCDelegate
            tablePrefix: QRTZ_
            isClustered: true
            clusterCheckinInterval: 10000
            useProperties: false
          threadPool:
            class: org.quartz.simpl.SimpleThreadPool
            threadCount: 10
            threadPriority: 5
            threadsInheritContextClassLoaderOfInitializingThread: true
    #数据库方式
    job-store-type: jdbc

定义JobDetails实体

/**
 * @author pdai
 *
 */
@Data
public class JobDetails{
	private String cronExpression;
	private String jobClassName;
	private String triggerGroupName;
	private String triggerName;
	private String jobGroupName;
	private String jobName;
	private Date nextFireTime;
	private Date previousFireTime;
	private Date startTime;
	private String timeZone;
	private String status;
}

Job管理类

package tech.pdai.springboot.quartz.cluster.manager;

import java.util.ArrayList;
import java.util.HashMap;
import java.util.List;
import java.util.Map;
import java.util.Set;

import com.github.pagehelper.PageHelper;
import com.github.pagehelper.PageInfo;
import org.quartz.CronScheduleBuilder;
import org.quartz.CronTrigger;
import org.quartz.DateBuilder;
import org.quartz.DateBuilder.IntervalUnit;
import org.quartz.Job;
import org.quartz.JobBuilder;
import org.quartz.JobDetail;
import org.quartz.JobExecutionContext;
import org.quartz.JobKey;
import org.quartz.Scheduler;
import org.quartz.SchedulerException;
import org.quartz.SimpleScheduleBuilder;
import org.quartz.Trigger;
import org.quartz.TriggerBuilder;
import org.quartz.TriggerKey;
import org.quartz.impl.matchers.GroupMatcher;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.scheduling.quartz.QuartzJobBean;
import org.springframework.stereotype.Component;
import tech.pdai.springboot.quartz.cluster.entity.JobDetails;

/**
 * @author pdai
 */
@Component
public class QuartzManager {

    @Autowired
    private Scheduler sched;

    /**
     * 创建or更新任务，存在则更新不存在创建
     *
     * @param jobClass     任务类
     * @param jobName      任务名称
     * @param jobGroupName 任务组名称
     * @param jobCron      cron表达式
     */
    public void addOrUpdateJob(Class<? extends QuartzJobBean> jobClass, String jobName, String jobGroupName, String jobCron) {
        try {
            TriggerKey triggerKey = TriggerKey.triggerKey(jobName, jobGroupName);
            CronTrigger trigger = (CronTrigger) sched.getTrigger(triggerKey);
            if (trigger==null) {
                addJob(jobClass, jobName, jobGroupName, jobCron);
            } else {
                if (trigger.getCronExpression().equals(jobCron)) {
                    return;
                }
                updateJob(jobName, jobGroupName, jobCron);
            }
        } catch (SchedulerException e) {
            e.printStackTrace();
        }
    }

    /**
     * 增加一个job
     *
     * @param jobClass     任务实现类
     * @param jobName      任务名称
     * @param jobGroupName 任务组名
     * @param jobCron      cron表达式(如：0/5 * * * * ? )
     */
    public void addJob(Class<? extends QuartzJobBean> jobClass, String jobName, String jobGroupName, String jobCron) {
        try {
            JobDetail jobDetail = JobBuilder.newJob(jobClass).withIdentity(jobName, jobGroupName).build();
            Trigger trigger = TriggerBuilder.newTrigger().withIdentity(jobName, jobGroupName)
                    .startAt(DateBuilder.futureDate(1, IntervalUnit.SECOND))
                    .withSchedule(CronScheduleBuilder.cronSchedule(jobCron)).startNow().build();

            sched.scheduleJob(jobDetail, trigger);
            if (!sched.isShutdown()) {
                sched.start();
            }
        } catch (SchedulerException e) {
            e.printStackTrace();
        }
    }

    /**
     * @param jobClass
     * @param jobName
     * @param jobGroupName
     * @param jobTime
     */
    public void addJob(Class<? extends Job> jobClass, String jobName, String jobGroupName, int jobTime) {
        addJob(jobClass, jobName, jobGroupName, jobTime, -1);
    }

    public void addJob(Class<? extends Job> jobClass, String jobName, String jobGroupName, int jobTime, int jobTimes) {
        try {
            JobDetail jobDetail = JobBuilder.newJob(jobClass).withIdentity(jobName, jobGroupName)// 任务名称和组构成任务key
                    .build();
            // 使用simpleTrigger规则
            Trigger trigger;
            if (jobTimes < 0) {
                trigger = TriggerBuilder.newTrigger().withIdentity(jobName, jobGroupName)
                        .withSchedule(SimpleScheduleBuilder.repeatSecondlyForever(1).withIntervalInSeconds(jobTime))
                        .startNow().build();
            } else {
                trigger = TriggerBuilder
                        .newTrigger().withIdentity(jobName, jobGroupName).withSchedule(SimpleScheduleBuilder
                                .repeatSecondlyForever(1).withIntervalInSeconds(jobTime).withRepeatCount(jobTimes))
                        .startNow().build();
            }
            sched.scheduleJob(jobDetail, trigger);
            if (!sched.isShutdown()) {
                sched.start();
            }
        } catch (SchedulerException e) {
            e.printStackTrace();
        }
    }

    public void updateJob(String jobName, String jobGroupName, String jobTime) {
        try {
            TriggerKey triggerKey = TriggerKey.triggerKey(jobName, jobGroupName);
            CronTrigger trigger = (CronTrigger) sched.getTrigger(triggerKey);
            trigger = trigger.getTriggerBuilder().withIdentity(triggerKey)
                    .withSchedule(CronScheduleBuilder.cronSchedule(jobTime)).build();
            // 重启触发器
            sched.rescheduleJob(triggerKey, trigger);
        } catch (SchedulerException e) {
            e.printStackTrace();
        }
    }

    /**
     * 删除任务一个job
     *
     * @param jobName      任务名称
     * @param jobGroupName 任务组名
     */
    public void deleteJob(String jobName, String jobGroupName) {
        try {
            sched.pauseTrigger(TriggerKey.triggerKey(jobName, jobGroupName));
            sched.unscheduleJob(TriggerKey.triggerKey(jobName, jobGroupName));
            sched.deleteJob(new JobKey(jobName, jobGroupName));
        } catch (Exception e) {
            e.printStackTrace();
        }
    }

    /**
     * 暂停一个job
     *
     * @param jobName
     * @param jobGroupName
     */
    public void pauseJob(String jobName, String jobGroupName) {
        try {
            JobKey jobKey = JobKey.jobKey(jobName, jobGroupName);
            sched.pauseJob(jobKey);
        } catch (SchedulerException e) {
            e.printStackTrace();
        }
    }

    /**
     * 恢复一个job
     *
     * @param jobName
     * @param jobGroupName
     */
    public void resumeJob(String jobName, String jobGroupName) {
        try {
            JobKey jobKey = JobKey.jobKey(jobName, jobGroupName);
            sched.resumeJob(jobKey);
        } catch (SchedulerException e) {
            e.printStackTrace();
        }
    }

    /**
     * 立即执行一个job
     *
     * @param jobName
     * @param jobGroupName
     */
    public void runAJobNow(String jobName, String jobGroupName) {
        try {
            JobKey jobKey = JobKey.jobKey(jobName, jobGroupName);
            sched.triggerJob(jobKey);
        } catch (SchedulerException e) {
            e.printStackTrace();
        }
    }

    public PageInfo<JobDetails> queryAllJobBean(int pageNum, int pageSize) {
        PageHelper.startPage(pageNum, pageSize);
        List<JobDetails> jobList = null;
        try {
            GroupMatcher<JobKey> matcher = GroupMatcher.anyJobGroup();
            Set<JobKey> jobKeys = sched.getJobKeys(matcher);
            jobList = new ArrayList<>();
            for (JobKey jobKey : jobKeys) {
                List<? extends Trigger> triggers = sched.getTriggersOfJob(jobKey);
                for (Trigger trigger : triggers) {
                    JobDetails jobDetails = new JobDetails();
                    if (trigger instanceof CronTrigger) {
                        CronTrigger cronTrigger = (CronTrigger) trigger;
                        jobDetails.setCronExpression(cronTrigger.getCronExpression());
                        jobDetails.setTimeZone(cronTrigger.getTimeZone().getDisplayName());
                    }
                    jobDetails.setTriggerGroupName(trigger.getKey().getName());
                    jobDetails.setTriggerName(trigger.getKey().getGroup());
                    jobDetails.setJobGroupName(jobKey.getGroup());
                    jobDetails.setJobName(jobKey.getName());
                    jobDetails.setStartTime(trigger.getStartTime());
                    jobDetails.setJobClassName(sched.getJobDetail(jobKey).getJobClass().getName());
                    jobDetails.setNextFireTime(trigger.getNextFireTime());
                    jobDetails.setPreviousFireTime(trigger.getPreviousFireTime());
                    jobDetails.setStatus(sched.getTriggerState(trigger.getKey()).name());
                    jobList.add(jobDetails);
                }
            }
        } catch (SchedulerException e) {
            e.printStackTrace();
        }
        return new PageInfo<>(jobList);
    }

    /**
     * 获取所有计划中的任务列表
     *
     * @return
     */
    public List<Map<String, Object>> queryAllJob() {
        List<Map<String, Object>> jobList = null;
        try {
            GroupMatcher<JobKey> matcher = GroupMatcher.anyJobGroup();
            Set<JobKey> jobKeys = sched.getJobKeys(matcher);
            jobList = new ArrayList<>();
            for (JobKey jobKey : jobKeys) {
                List<? extends Trigger> triggers = sched.getTriggersOfJob(jobKey);
                for (Trigger trigger : triggers) {
                    Map<String, Object> map = new HashMap<>();
                    map.put("jobName", jobKey.getName());
                    map.put("jobGroupName", jobKey.getGroup());
                    map.put("description", "trigger:" + trigger.getKey());
                    Trigger.TriggerState triggerState = sched.getTriggerState(trigger.getKey());
                    map.put("jobStatus", triggerState.name());
                    if (trigger instanceof CronTrigger) {
                        CronTrigger cronTrigger = (CronTrigger) trigger;
                        String cronExpression = cronTrigger.getCronExpression();
                        map.put("jobTime", cronExpression);
                    }
                    jobList.add(map);
                }
            }
        } catch (SchedulerException e) {
            e.printStackTrace();
        }
        return jobList;
    }

    /**
     * 获取所有正在运行的job
     *
     * @return
     */
    public List<Map<String, Object>> queryRunJon() {
        List<Map<String, Object>> jobList = null;
        try {
            List<JobExecutionContext> executingJobs = sched.getCurrentlyExecutingJobs();
            jobList = new ArrayList<>(executingJobs.size());
            for (JobExecutionContext executingJob : executingJobs) {
                Map<String, Object> map = new HashMap<>();
                JobDetail jobDetail = executingJob.getJobDetail();
                JobKey jobKey = jobDetail.getKey();
                Trigger trigger = executingJob.getTrigger();
                map.put("jobName", jobKey.getName());
                map.put("jobGroupName", jobKey.getGroup());
                map.put("description", "trigger:" + trigger.getKey());
                Trigger.TriggerState triggerState = sched.getTriggerState(trigger.getKey());
                map.put("jobStatus", triggerState.name());
                if (trigger instanceof CronTrigger) {
                    CronTrigger cronTrigger = (CronTrigger) trigger;
                    String cronExpression = cronTrigger.getCronExpression();
                    map.put("jobTime", cronExpression);
                }
                jobList.add(map);
            }
        } catch (SchedulerException e) {
            e.printStackTrace();
        }
        return jobList;
    }
}

Job控制器接口

package tech.pdai.springboot.quartz.cluster.controller;

import java.util.HashMap;
import java.util.Map;

import com.github.pagehelper.PageInfo;
import org.springframework.beans.factory.annotation.Autowired;
import org.springframework.scheduling.quartz.QuartzJobBean;
import org.springframework.web.bind.annotation.GetMapping;
import org.springframework.web.bind.annotation.PostMapping;
import org.springframework.web.bind.annotation.RequestMapping;
import org.springframework.web.bind.annotation.RequestParam;
import org.springframework.web.bind.annotation.RestController;
import tech.pdai.springboot.quartz.cluster.entity.JobDetails;
import tech.pdai.springboot.quartz.cluster.manager.QuartzManager;


/**
 * @author pdai
 */
@RestController
@RequestMapping(value = "/job")
public class JobController {

    @Autowired
    private QuartzManager qtzManager;

    @SuppressWarnings("unchecked")
    private static Class<? extends QuartzJobBean> getClass(String classname) throws Exception {
        Class<?> class1 = Class.forName(classname);
        return (Class<? extends QuartzJobBean>) class1;
    }

    /**
     * @param jobClassName
     * @param jobGroupName
     * @param cronExpression
     * @throws Exception
     */
    @PostMapping(value = "/addjob")
    public void addjob(@RequestParam(value = "jobClassName") String jobClassName,
                       @RequestParam(value = "jobGroupName") String jobGroupName,
                       @RequestParam(value = "cronExpression") String cronExpression) throws Exception {
        qtzManager.addOrUpdateJob(getClass(jobClassName), jobClassName, jobGroupName, cronExpression);
    }

    /**
     * @param jobClassName
     * @param jobGroupName
     * @throws Exception
     */
    @PostMapping(value = "/pausejob")
    public void pausejob(@RequestParam(value = "jobClassName") String jobClassName,
                         @RequestParam(value = "jobGroupName") String jobGroupName) throws Exception {
        qtzManager.pauseJob(jobClassName, jobGroupName);
    }

    /**
     * @param jobClassName
     * @param jobGroupName
     * @throws Exception
     */
    @PostMapping(value = "/resumejob")
    public void resumejob(@RequestParam(value = "jobClassName") String jobClassName,
                          @RequestParam(value = "jobGroupName") String jobGroupName) throws Exception {
        qtzManager.resumeJob(jobClassName, jobGroupName);
    }

    /**
     * @param jobClassName
     * @param jobGroupName
     * @param cronExpression
     * @throws Exception
     */
    @PostMapping(value = "/reschedulejob")
    public void rescheduleJob(@RequestParam(value = "jobClassName") String jobClassName,
                              @RequestParam(value = "jobGroupName") String jobGroupName,
                              @RequestParam(value = "cronExpression") String cronExpression) throws Exception {
        qtzManager.addOrUpdateJob(getClass(jobClassName), jobClassName, jobGroupName, cronExpression);
    }

    /**
     * @param jobClassName
     * @param jobGroupName
     * @throws Exception
     */
    @PostMapping(value = "/deletejob")
    public void deletejob(@RequestParam(value = "jobClassName") String jobClassName,
                          @RequestParam(value = "jobGroupName") String jobGroupName) throws Exception {
        qtzManager.deleteJob(jobClassName, jobGroupName);
    }

    /**
     * @param pageNum
     * @param pageSize
     * @return
     */
    @GetMapping(value = "/queryjob")
    public Map<String, Object> queryjob(@RequestParam(value = "pageNum") Integer pageNum,
                                        @RequestParam(value = "pageSize") Integer pageSize) {
        PageInfo<JobDetails> jobAndTrigger = qtzManager.queryAllJobBean(pageNum, pageSize);
        Map<String, Object> map = new HashMap<String, Object>();
        map.put("JobAndTrigger", jobAndTrigger);
        map.put("number", jobAndTrigger.getTotal());
        return map;
    }
}

定义具体的Job

package tech.pdai.springboot.quartz.cluster.job;

import java.util.Date;

import lombok.extern.slf4j.Slf4j;
import org.quartz.JobExecutionContext;
import org.quartz.JobExecutionException;
import org.springframework.scheduling.quartz.QuartzJobBean;

@Slf4j
public class HelloJob extends QuartzJobBean {

    @Override
    protected void executeInternal(JobExecutionContext context) throws JobExecutionException {
        // get parameters
        context.getJobDetail().getJobDataMap().forEach(
                (k, v) -> log.info("param, key:{}, value:{}", k, v)
        );
        // your logics
        log.info("Hello Job执行时间: " + new Date());
    }
}

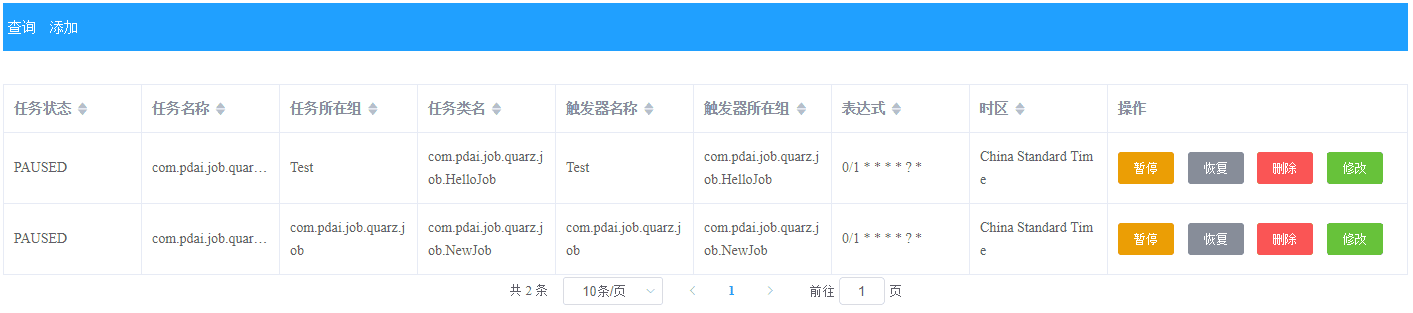

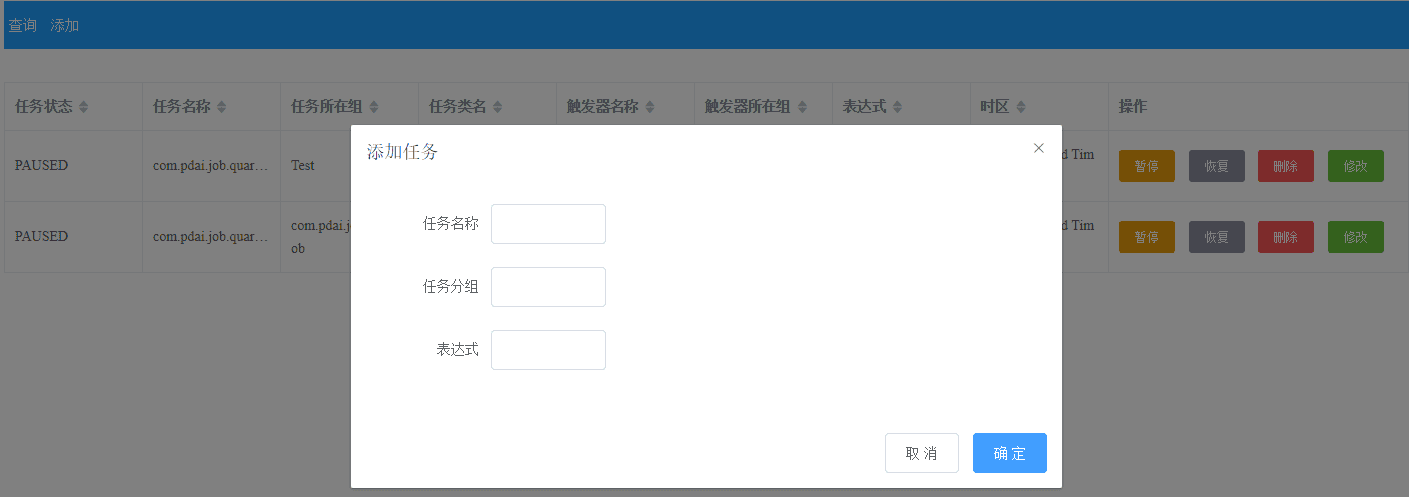

前端实现

简单用VueJS 写个页面测试

<!DOCTYPE html>
<html>
<head>
<meta charset="UTF-8">
	<title>QuartzDemo</title>
	<link rel="stylesheet" href="https://unpkg.com/element-ui@2.0.5/lib/theme-chalk/index.css">
	<script src="https://unpkg.com/vue/dist/vue.js"></script>
	<script src="http://cdn.bootcss.com/vue-resource/1.3.4/vue-resource.js"></script>
	<script src="https://unpkg.com/element-ui@2.0.5/lib/index.js"></script>

	<style>
      #top {
	      background:#20A0FF;
	      padding:5px;
	      overflow:hidden
      }
	</style>

</head>
<body>
    <div id="test">

		<div id="top">
				<el-button type="text" @click="search" style="color:white">查询</el-button>
				<el-button type="text" @click="handleadd" style="color:white">添加</el-button>
			</span>
		</div>

		<br/>

        <div style="margin-top:15px">

		  <el-table
		    ref="testTable"
		    :data="tableData"
		    style="width:100%"
		    border
		    >
		    <el-table-column
		      prop="status"
		      label="任务状态"
		      sortable
		      show-overflow-tooltip>
		    </el-table-column>

		    <el-table-column
		      prop="jobName"
		      label="任务名称"
		      sortable
		      show-overflow-tooltip>
		    </el-table-column>

		    <el-table-column
		      prop="jobGroupName"
		      label="任务所在组"
		      sortable>
		    </el-table-column>

   		    <el-table-column
		      prop="jobClassName"
		      label="任务类名"
		      sortable>
		    </el-table-column>

   		    <el-table-column
		      prop="triggerName"
		      label="触发器名称"
		      sortable>
		    </el-table-column>

		    <el-table-column
		      prop="triggerGroupName"
		      label="触发器所在组"
		      sortable>
		    </el-table-column>

		    <el-table-column
		      prop="cronExpression"
		      label="表达式"
		      sortable>
		    </el-table-column>

		    <el-table-column
		      prop="timeZone"
		      label="时区"
		      sortable>
		    </el-table-column>

	        <el-table-column label="操作" width="300">
		      <template scope="scope">
		      	<el-button
		          size="small"
		          type="warning"
		          @click="handlePause(scope.$index, scope.row)">暂停</el-button>

		        <el-button
		          size="small"
		          type="info"
		          @click="handleResume(scope.$index, scope.row)">恢复</el-button>

		        <el-button
		          size="small"
		          type="danger"
		          @click="handleDelete(scope.$index, scope.row)">删除</el-button>

		        <el-button
		          size="small"
		          type="success"
		          @click="handleUpdate(scope.$index, scope.row)">修改</el-button>
		      </template>
		    </el-table-column>
		  </el-table>

		  <div align="center">
			  <el-pagination
			      @size-change="handleSizeChange"
			      @current-change="handleCurrentChange"
			      :current-page="currentPage"
			      :page-sizes="[10, 20, 30, 40]"
			      :page-size="pagesize"
			      layout="total, sizes, prev, pager, next, jumper"
			      :total="totalCount">
			  </el-pagination>
		  </div>
		</div>

		<el-dialog title="添加任务" :visible.sync="dialogFormVisible">
		  <el-form :model="form">
		    <el-form-item label="任务名称" label-width="120px" style="width:35%">
		      <el-input v-model="form.jobName" auto-complete="off"></el-input>
		    </el-form-item>
		    <el-form-item label="任务分组" label-width="120px" style="width:35%">
		      <el-input v-model="form.jobGroup" auto-complete="off"></el-input>
		    </el-form-item>
		    <el-form-item label="表达式" label-width="120px" style="width:35%">
		      <el-input v-model="form.cronExpression" auto-complete="off"></el-input>
		    </el-form-item>
		  </el-form>
		  <div slot="footer" class="dialog-footer">
		    <el-button @click="dialogFormVisible = false">取 消</el-button>
		    <el-button type="primary" @click="add">确 定</el-button>
		  </div>
		</el-dialog>

		<el-dialog title="修改任务" :visible.sync="updateFormVisible">
		  <el-form :model="updateform">
		    <el-form-item label="表达式" label-width="120px" style="width:35%">
		      <el-input v-model="updateform.cronExpression" auto-complete="off"></el-input>
		    </el-form-item>
		  </el-form>
		  <div slot="footer" class="dialog-footer">
		    <el-button @click="updateFormVisible = false">取 消</el-button>
		    <el-button type="primary" @click="update">确 定</el-button>
		  </div>
		</el-dialog>

    </div>

    <footer align="center">
        <p>&copy; Quartz 任务管理</p>
    </footer>

	<script>
	var vue = new Vue({
			el:"#test",
		    data: {
		    	//表格当前页数据
		    	tableData: [],

		        //请求的URL
		        url:'job/queryjob',

		        //默认每页数据量
		        pagesize: 10,

		        //当前页码
		        currentPage: 1,

		        //查询的页码
		        start: 1,

		        //默认数据总数
		        totalCount: 1000,

		        //添加对话框默认可见性
		        dialogFormVisible: false,

		        //修改对话框默认可见性
		        updateFormVisible: false,

		        //提交的表单
		        form: {
		        	jobName: '',
		        	jobGroup: '',
		        	cronExpression: '',
		          },

		        updateform: {
		        	jobName: '',
		        	jobGroup: '',
		        	cronExpression: '',
		        },
		    },

		    methods: {

		        //从服务器读取数据
				loadData: function(pageNum, pageSize){
					this.$http.get('job/queryjob?' + 'pageNum=' +  pageNum + '&pageSize=' + pageSize).then(function(res){
						console.log(res)
                		this.tableData = res.body.JobAndTrigger.list;
                		this.totalCount = res.body.number;
                	},function(){
                  		console.log('failed');
                	});
				},

		        //单行删除
			    handleDelete: function(index, row) {
					this.$http.post('job/deletejob',{"jobClassName":row.jobName,"jobGroupName":row.jobGroupName},{emulateJSON: true}).then(function(res){
						this.loadData( this.currentPage, this.pagesize);
		            },function(){
		                console.log('failed');
		            });
		        },

		        //暂停任务
		        handlePause: function(index, row){
		        	this.$http.post('job/pausejob',{"jobClassName":row.jobName,"jobGroupName":row.jobGroupName},{emulateJSON: true}).then(function(res){
						this.loadData( this.currentPage, this.pagesize);
		            },function(){
		                console.log('failed');
		            });
		        },

		        //恢复任务
		        handleResume: function(index, row){
		        	this.$http.post('job/resumejob',{"jobClassName":row.jobName,"jobGroupName":row.jobGroupName},{emulateJSON: true}).then(function(res){
						this.loadData( this.currentPage, this.pagesize);
		            },function(){
		                console.log('failed');
		            });
		        },

		        //搜索
		        search: function(){
		        	this.loadData(this.currentPage, this.pagesize);
		        },

		        //弹出对话框
		        handleadd: function(){
		            this.dialogFormVisible = true;
		        },

		        //添加
		        add: function(){
		        	this.$http.post('job/addjob',{"jobClassName":this.form.jobName,"jobGroupName":this.form.jobGroup,"cronExpression":this.form.cronExpression},{emulateJSON: true}).then(function(res){
        				this.loadData(this.currentPage, this.pagesize);
        				this.dialogFormVisible = false;
                    },function(){
                        console.log('failed');
                    });
		        },

		        //更新
		        handleUpdate: function(index, row){
		        	console.log(row)
		        	this.updateFormVisible = true;
		        	this.updateform.jobName = row.jobClassName;
		        	this.updateform.jobGroup = row.jobGroupName;
		        },

		        //更新任务
		        update: function(){
		        	this.$http.post
		        	('job/reschedulejob',
		        			{"jobClassName":this.updateform.jobName,
		        			 "jobGroupName":this.updateform.jobGroup,
		        			 "cronExpression":this.updateform.cronExpression
		        			 },{emulateJSON: true}
		        	).then(function(res){
		        		this.loadData(this.currentPage, this.pagesize);
        				this.updateFormVisible = false;
		        	},function(){
                        console.log('failed');
                    });

		        },

		        //每页显示数据量变更
		        handleSizeChange: function(val) {
		            this.pagesize = val;
		            this.loadData(this.currentPage, this.pagesize);
		        },

		        //页码变更
		        handleCurrentChange: function(val) {
		            this.currentPage = val;
		            this.loadData(this.currentPage, this.pagesize);
		        },

		    },


		  });

		  //载入数据
    	  vue.loadData(vue.currentPage, vue.pagesize);
	</script>

</body>
</html>

测试效果

(PS: 这里的任务名称需要改成你自己的完整类名称)

展示正在运行的Jobs:

增加新的Job:

Jobs持久化在数据库:

示例源码

https://github.com/realpdai/tech-pdai-spring-demos

常用搜索	百度 Google Bing Github 搜代码
技术社区	CSDN 博客园 OSChina 知否掘金 Linux公社 IBM 开发者 StackOverflow
Java相关	面向对象基础语法基础集合框架并发基础并发关键字 JUC并发框架 IO框架 Java8 特性 JVM基础调试排错更多资源
算法相关	数组与线性表树详解图详解内部排序算法思想安全算法大数据处理分布式算法负载均衡算法推荐算法头脑风暴
数据库相关	数据库原理 SQL语言 MySQL相关 MongoDB ElasticSearch
开发基础相关	常用类库单元测试正则表达式网络协议安全相关常见重构技巧
架构相关	架构基础架构视角架构演进架构模式和要素高并发之缓存高并发之限流高并发之降级负载均衡容灾备份架构安全秒杀系统设计架构案例
工具和部署	工具集合 IDE相关 Git Maven Linux Docker
方法论	SOLID CAP BASE 开源协议代码规范设计模式
产品和团队	产品相关团队相关其它分享

# SpringBoot定时任务 - 分布式quartz cluster方式

# 准备知识点

# 什么是Quartz持久化

# 实现案例

# 后端实现

# 前端实现

# 测试效果

# 示例源码
