Spring Boot - Swagger UI

本例也是一个Spring Boot的Hello World 应用。@pdai 包含, 对用户基本数据增删查改:

  • SpringBoot
  • JPA
  • H2
  • Swagger

另外注意: 使用swagger还有插件来生成一个wiki页面,使用如下:

  • 使用swagger2markup-maven-plugin将/v2/api-docs生成ASCIIDOC;
  • 使用asciidoctor-maven-plugin,将ASCIIDOC转成HTML页面;

实现效果

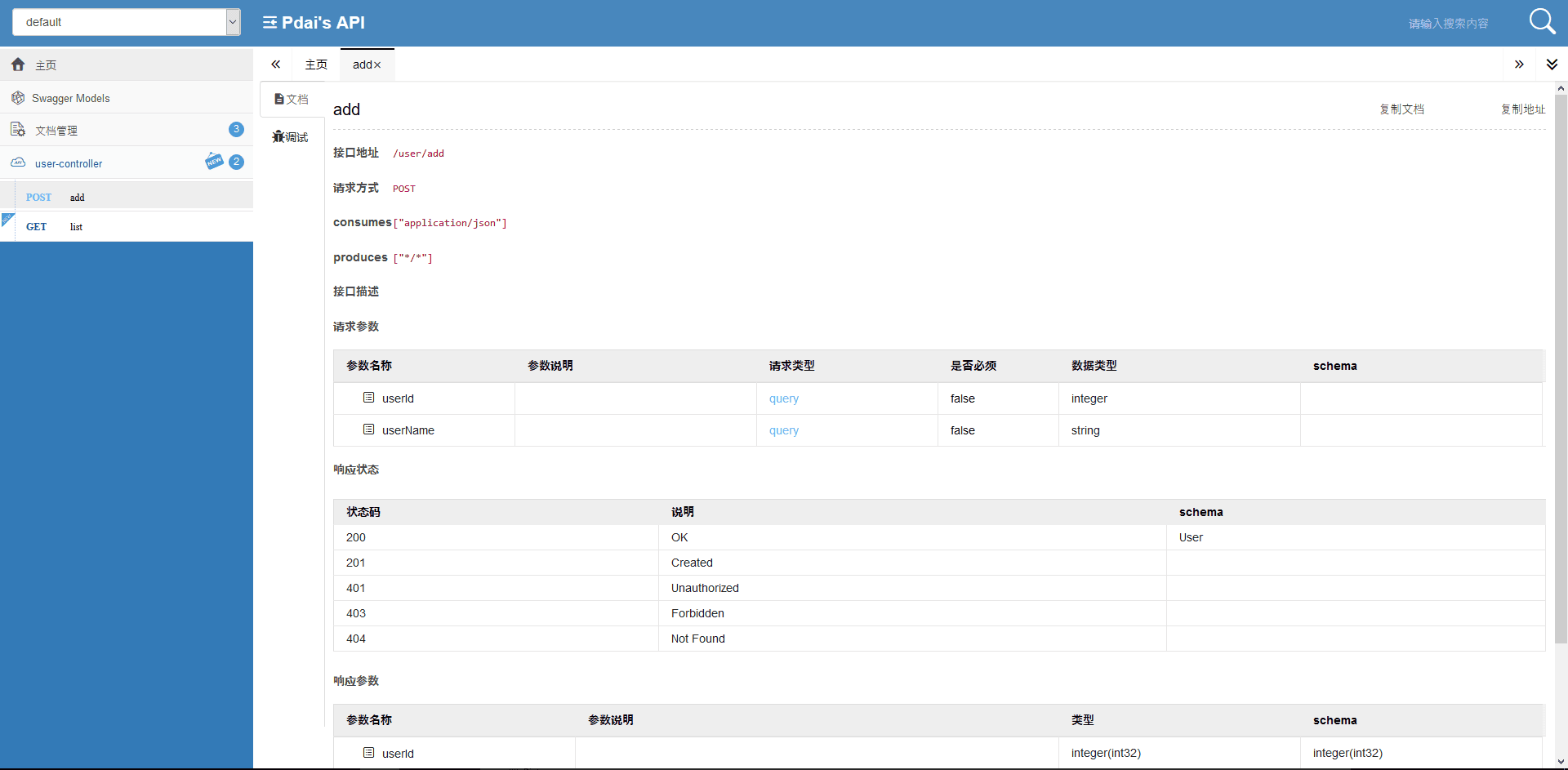

接口描述

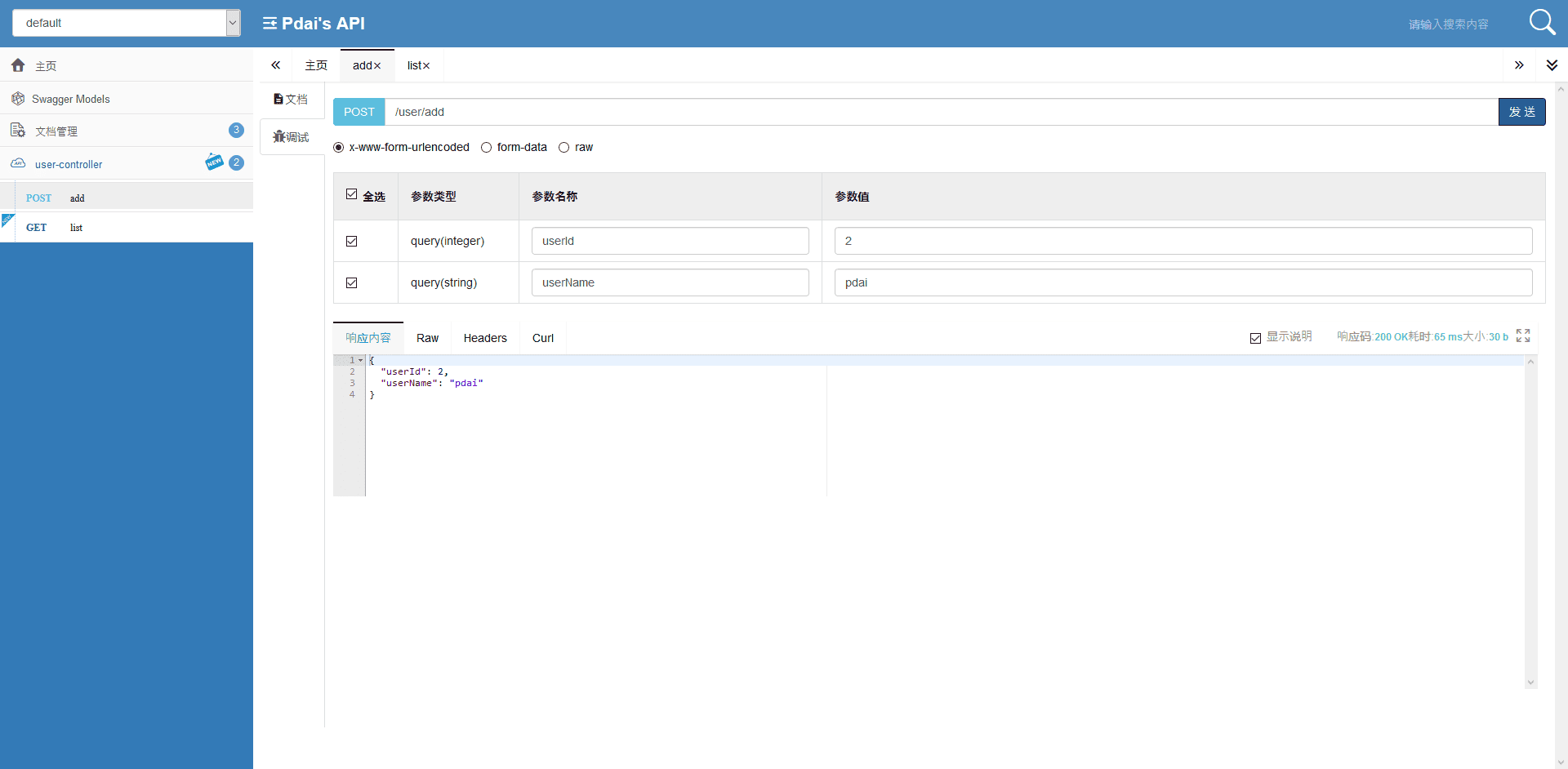

接口调试

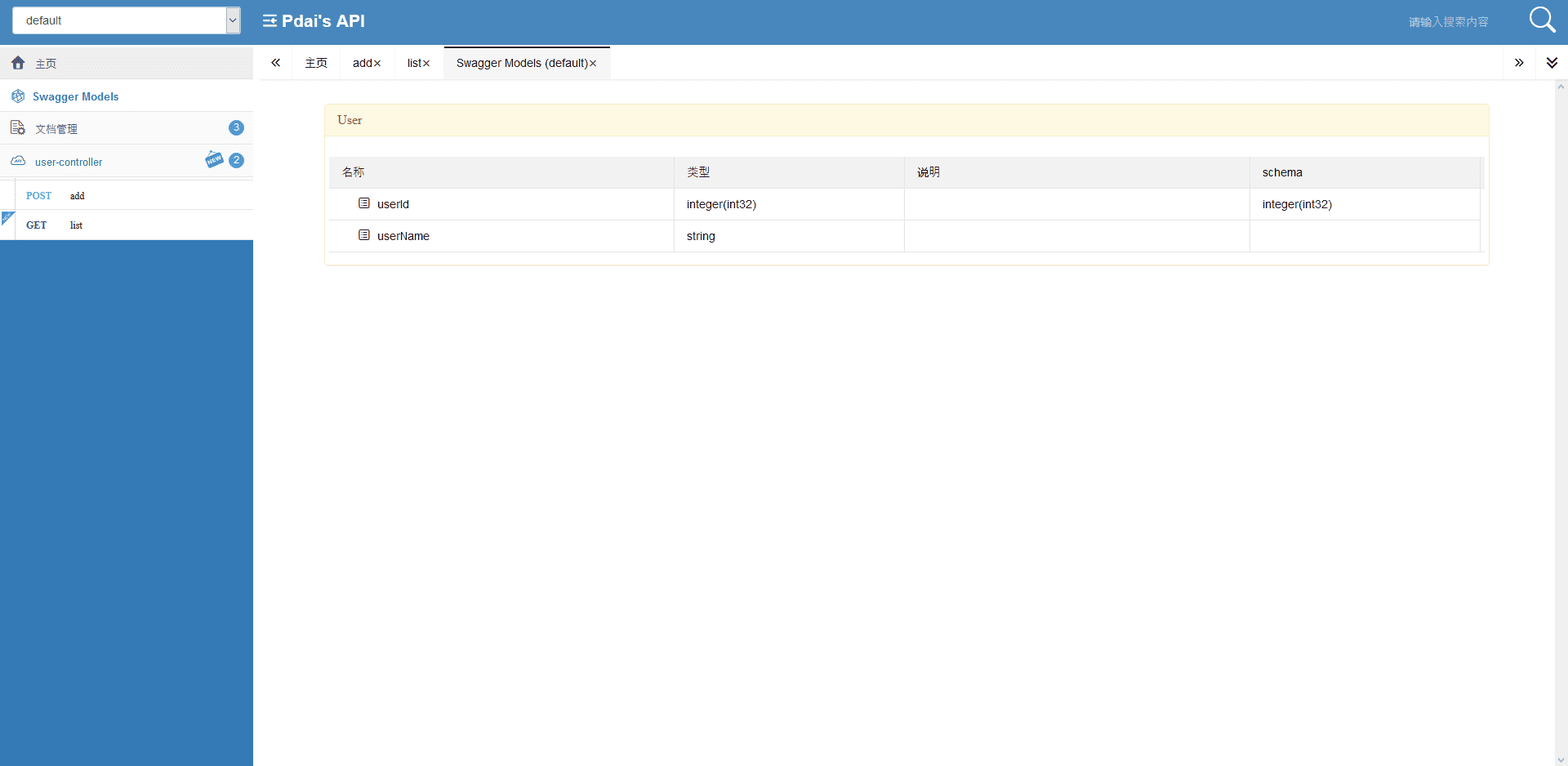

模型展示

代码

  • pom.xml中添加Swagger-ui
<project xmlns="http://maven.apache.org/POM/4.0.0"
	xmlns:xsi="http://www.w3.org/2001/XMLSchema-instance"
	xsi:schemaLocation="http://maven.apache.org/POM/4.0.0 http://maven.apache.org/xsd/maven-4.0.0.xsd">
	<modelVersion>4.0.0</modelVersion>

	<groupId>com.pdai</groupId>
	<artifactId>springboot-swagger-demo</artifactId>
	<version>0.0.1-SNAPSHOT</version>
	<packaging>jar</packaging>

	<name>springboot-swagger-demo</name>
	<url>http://maven.apache.org</url>

	<parent>
		<groupId>org.springframework.boot</groupId>
		<artifactId>spring-boot-starter-parent</artifactId>
		<version>1.5.9.RELEASE</version>
		<relativePath />
	</parent>

	<properties>
		<project.build.sourceEncoding>UTF-8</project.build.sourceEncoding>
		<project.reporting.outputEncoding>UTF-8</project.reporting.outputEncoding>
		<java.version>1.8</java.version>
	</properties>

	<dependencies>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-web</artifactId>
		</dependency>
		<dependency>
			<groupId>com.h2database</groupId>
			<artifactId>h2</artifactId>
			<scope>runtime</scope>
		</dependency>
		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-data-jpa</artifactId>
		</dependency>

		<dependency>
			<groupId>org.springframework.boot</groupId>
			<artifactId>spring-boot-starter-test</artifactId>
			<scope>test</scope>
		</dependency>
		<dependency>
			<groupId>io.springfox</groupId>
			<artifactId>springfox-swagger2</artifactId>
			<version>2.9.2</version>
		</dependency>
		<!--
		<dependency>
			<groupId>io.springfox</groupId>
			<artifactId>springfox-swagger-ui</artifactId>
			<version>2.9.2</version>
		</dependency> -->

		<!-- https://mvnrepository.com/artifact/com.github.xiaoymin/swagger-bootstrap-ui -->
		<dependency>
			<groupId>com.github.xiaoymin</groupId>
			<artifactId>swagger-bootstrap-ui</artifactId>
			<version>1.9.5</version>
		</dependency>

	</dependencies>

	<build>
		<plugins>
			<plugin>
				<groupId>org.springframework.boot</groupId>
				<artifactId>spring-boot-maven-plugin</artifactId>
			</plugin>
		</plugins>
	</build>
</project>
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
  • swaggerConfig
package com.pdai.swagger.config;

import org.springframework.context.annotation.Bean;
import org.springframework.context.annotation.Configuration;

import springfox.documentation.builders.ApiInfoBuilder;
import springfox.documentation.builders.PathSelectors;
import springfox.documentation.builders.RequestHandlerSelectors;
import springfox.documentation.service.ApiInfo;
import springfox.documentation.spi.DocumentationType;
import springfox.documentation.spring.web.plugins.Docket;
import springfox.documentation.swagger2.annotations.EnableSwagger2;

@Configuration
@EnableSwagger2
public class SwaggerConfig {

	@Bean
	public Docket createRestApi() {
		return new Docket(DocumentationType.SWAGGER_2).apiInfo(apiInfo()).select()
				.apis(RequestHandlerSelectors.basePackage("com.pdai.swagger")).paths(PathSelectors.any()).build();
	}

	private ApiInfo apiInfo() {
		return new ApiInfoBuilder().title("Pdai's API").description("swagger-bootstrap-ui")
				.termsOfServiceUrl("http://localhost:8080/").version("1.0").build();
	}
}
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
  • application.yml
spring:
  datasource:
    data: classpath:db/data.sql
    driverClassName: org.h2.Driver
    password: sa
    platform: h2
    schema: classpath:db/schema.sql
    url: jdbc:h2:mem:dbtest
    username: sa
  h2:
    console:
      enabled: true
      path: /h2
      settings:
        web-allow-others: true
  jpa:
    hibernate:
      ddl-auto: update
    show-sql: true
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
  • 对应SQL文件如下

data.sql

INSERT INTO tb_user (USER_ID,USER_NAME) VALUES(1,'赵一');
1

schema.sql

create table if not exists tb_user (
USER_ID int not null primary key auto_increment,
USER_NAME varchar(100)
);
1
2
3
4
  • Service, Dao, Entity

代码示例

@See https://github.com/realpdai/springboot-swagger-demo
